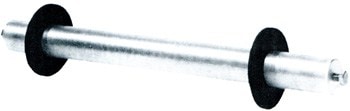

Made in USA Installed at outlet of chute, hopper or coolant line, the powerful permanent magnets trap particles of iron flowing by in sand, grain, foods or liquids. As material flows over, trapped particles move to underside of housing and cannot be dislodged. Utilizes ceramic magnets. Alnico and Neodymium magnets available.
Clean by moving neoprene wiper ring to the end. Load simply drops off. Easy to install. Requires no maintenance.
Ordering Information
"T" Series Tramp Iron Trap
| Model | Length Overall | Magnet Length |
| T121 | 8" | 4" |
| T122 | 12-7/8" | 8-7/8" |
| T123 | 17-3/4" | 13-3/4" |
| T124 | 22-5/8" | 18-5/8" |
| T125 | 27-1/2" | 23-1/2" |
| T126 | 32-3/8" | 28-3/8" |
| T127 | 37-1/4" | 33-1/4" |
| T128 | 42-1/8" | 38-1/8" |
| T129 | 47" | 43" |
| T130 | 51-7/8" | 47-7/8" |
| T131 | 56-3/4" | 52-3/4" |
Diameter of tubes: 1-1/8″
Add “N” suffix to part number for Neodymium Magnets
Add “A” suffix to part number for Alnico Magnets
NOTE: Standard housing is aluminum. Stainless steel available on special order.
"T" Series Tramp Iron Trap Info
| Ceramic | Neodymium | Alnico | |
| Gauss on Magnet Tube Surface | 1200 Gauss | 6300 Gauss | 1350 Gauss |
| Capacity (steel chips) per 4" of magnet length | 1 lb | 2.45 lbs | 1.55 lbs |
| Pull Force (for comparison purposes) | 25 lbs | 125 lbs | 35 lbs |
| Effective Distance (for comparison purposes) | 1-1/4" | 1-1/4" | 3" |
| Service Temperature (EPDM service temp = 300°F) | 300°F | 176°F | 300°F |
Deep Field Neodymium Versions available on request – contact engineering.
